Powder Polishing Measuring Rotary Airlock Valve 203mm Explosionproof

Brand Name : TECLION

Model Number : RDP80

Certification : CE,EAC,ATEX

Place of Origin : China Anhui

MOQ : 1

Price : Get the Best Price

Payment Terms : T/T

Supply Ability : Usually every one sets for 30 days

Delivery Time : 30 working days

Packaging Details : Professional export fumigation free wooden crate

Product type : Rotary airlock

Valve Height : 203 mm

Volume : 0.25 L

Driving : Reducer and Motor

Flange : optional PN6 or Clamp

Surface : Polishing

Lumen : Degreasing

Contact Now

Food And Medical Powder Polishing Measuring Rotary Airlock Valve

Product Description:

This hygiene grade rotary lock valve is mainly used in the food and pharmaceutical industries to meet customers' measurement and hygiene requirements. Suitable for working environments with a pressure difference not exceeding 1 barg and a temperature not exceeding 120 ℃. Valves have ATEX certification and can be used in explosion-proof areas. Multiple configurations such as rotor protection system and signal converter can be selected. The interior of the air lock can also be sprayed with insulating ceramics.

Product Features:

1) Gravity feeding

2) Temperature less than 120 ° C

3) Smooth import and export processing

4) Mirror polishing of inner and outer surfaces

5) Reserved gas seal interface

6) Flange clamp connection

7) Optional helical gears, worm gears, and worm gears

8) Can provide CE,EAC and ATEX certificate

Product Parameters:

No Item Note
1 Valve type Airlock valve
2 Pressure No more than1.0 barg
3 Height 203 mm
4 Temperature No more than 120 degrees
5 Flange PN 6 or Clamp flange
6 Gear box Helical gear, bevel gear, worm gear type

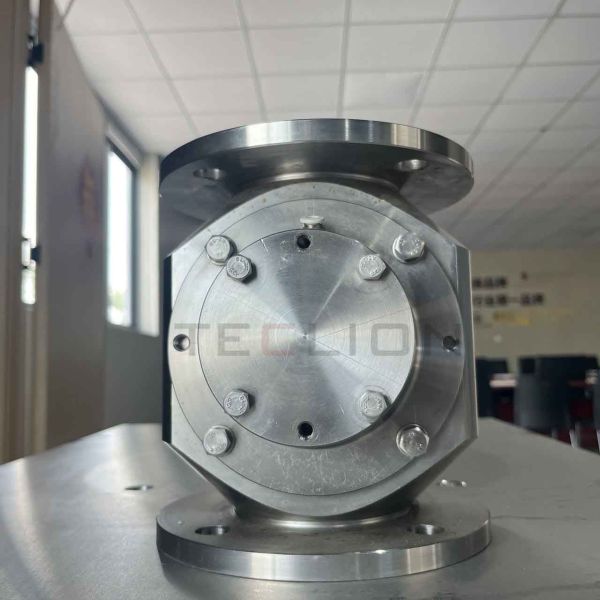

Product Pictures:

Powder Polishing Measuring Rotary Airlock Valve 203mm ExplosionproofPowder Polishing Measuring Rotary Airlock Valve 203mm ExplosionproofPowder Polishing Measuring Rotary Airlock Valve 203mm ExplosionproofPowder Polishing Measuring Rotary Airlock Valve 203mm Explosionproof
